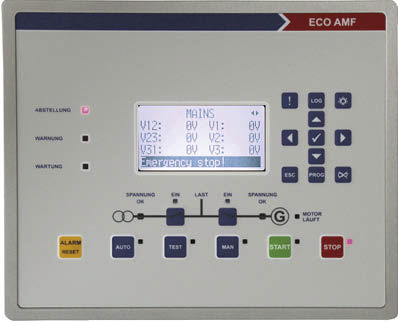

AMF Relay Eco MIDI

Automatic Gen-Set Controllers with Transfer Switching

Parameter configuration via RS-232 port of your notebook

Authorised access, secure communication

Selectable second language

Log last 50 events & alarm information with measured values

Statistics records

Mains & generator phase sequence control

3 phase mains voltage measurement

Power factor measurement for 3 phases

3 resistive sender inputs for Level, Temperature, Oil Pressure

Selectable resistive sender type; Pt-100 VDO,US, GM, Ford, Datcon, etc….

Speed sensing from alternator voltage or magnetic pickup

CanBus J1939 ECU communication

SPN, FMI and OC values reading from engines via J1939

Load Test selection

Compatible to Diesel, Gas or Gasoline generators

Auto, Manual and Test modes

Active, Reactive, Apparent power measurement

Adjustable start and stop timers

3 Phase Load Control Measurement

Configurable 5 inputs and 4 outputs

Local Remote Control and Visualisation function

  • Pre-Alarm

         Engine temperature

         Oil pressure
         Fuel level
         Over / Under voltage
         Over / Under frequency
         Over / Under speed

  • Warning & Electrical trip
    Earth fault
    Over current
    Short circuit
  • Alarm
    Alarm breaker not opened
    Alarm breaker not closed                    Generator breaker not opened
    Generator breaker not closed
  • Controls
    Fuel and Stop solenoid
    ECU power and stop
    Starter motor

         Automatic generator start

         Load transfer to Mains

         Preheat
         External alarm horn
         Engine cooling
          Idle mode

  •   Fail Monitoring

           Emergency stop
           Failed to start
           Low oil pressure
           High temperature
           Speed failure
           Voltage failure
           Charging fail
           Shutdown
           Warning

  • Error

         Over / Under speed
         Speed loss
         Fuel level
         Battery low
         Battery high
         Maintenance
         Over current
         Short circuit
         Engine stop
         CanBus
         Charge alternator

Dimensions

Panel Cut-Out

Protection

Weight

Operating/StorageTemperature

Operating/Storage Humidity

DC Battery Supply Voltage

CT Secondary

Sender Measurement

: 158 mm x 111 mm x 67 mm. (including connectors). Plastic housing for panel mounting.

:  120mm x 94mm.

: IP65 at front panel.

: Approximately 0,26 Kg.

: -20°C to +70°C / -30°C to +80°C

: 95% max. (non-condensing)

: 8 to 32 V dc (Peak: 36Vdc) Max. operating current is 370 mA.

: 5A.

: 0 to 1300 ohm, accuracy: 1 % FS, resolution: 1 ohm.
