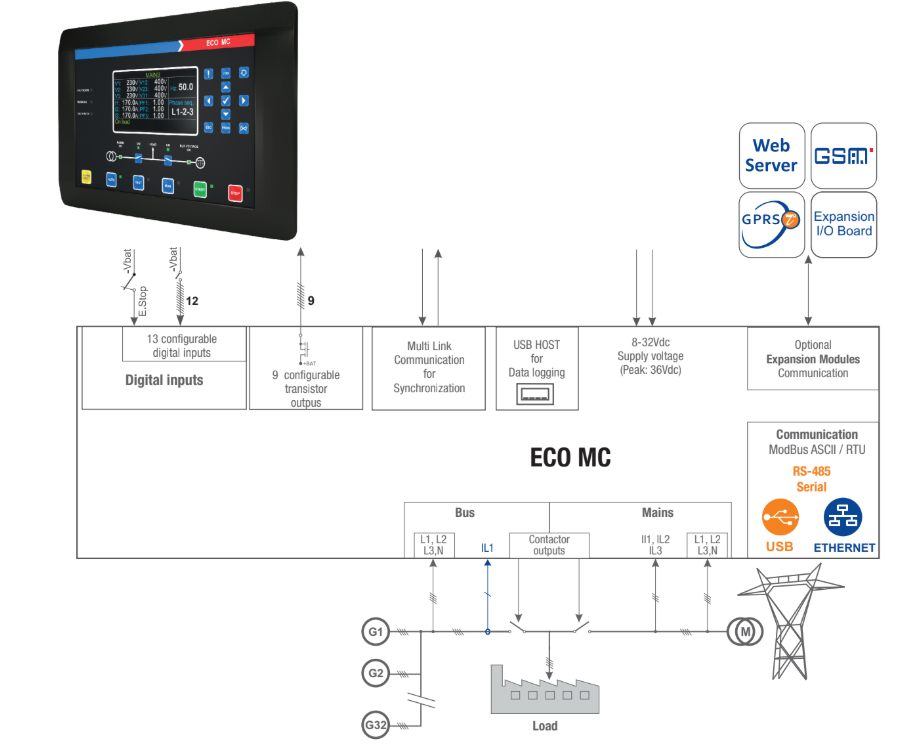

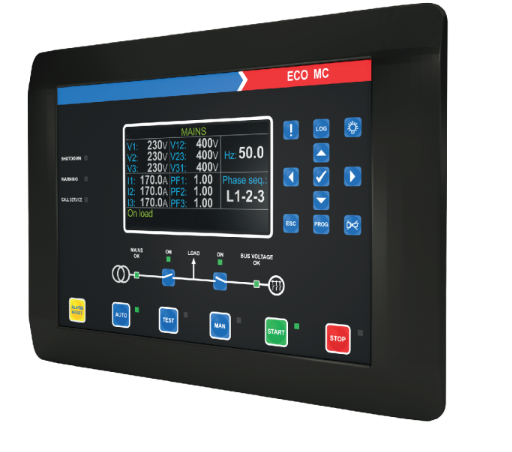

Eco MC

Automatic Transfer & Load Share Unit with Mains

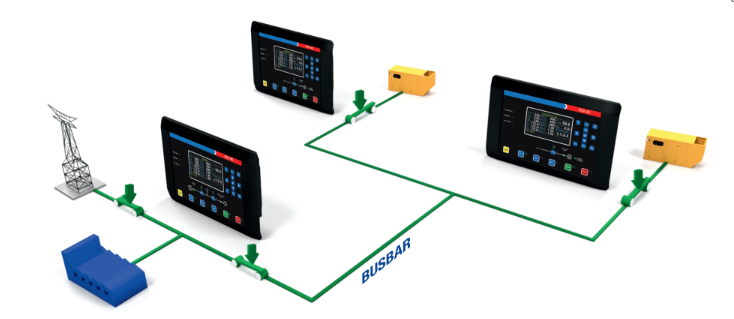

Load sharing with genset (up to 32 gensets)
Busbar voltages and frequency measurements
Bus failure detection
Peak lopping (mains or genset)
Power export to mains
Mains de-coupling protection with R.O.C.O.F and vector shift methods
Volts,frequency and phase matching
Synchroscope display
Logic Controller functionality for PLC
Black or gray theme selection for 4.3″ TFT LCD screen

  • Warning & Electrical Trip
    Mains rocof
    Mains vector shift
    Minimum genset
  • Alarm
    Bus breaker not opened
    Bus breaker not closed
    Mains breaker not opened
    Mains breaker not closed
  • Controls
    Mains supply
    Automatic genset start
    Load transfer
    Load sharing



  • Fail Monitoring
    Emergency stop
    Mains failure
    Bus failure
  • Error
    Battery low
    Battery high
    Can open
    Synchronization
    Minimum genset

Dimensions :

Panel Cut-Out :

Protection :

Weight

Environmental Rating :

Operating/Storage Temperature :

Operating/Storage Humidity :

DC Battery Supply Voltage :

CT Secondary :

Communication Interface :

: 276 mm x 189 mm x 45 mm. (including connectors). Plastic housing for panel mounting.

: 223mm x 162mm.

: IP65 at front panel.

: Approximately 0,82 Kg.

: Standard, indoor at an altitude of less then 2000 meters with non-condensing humidity.

: -20°C to +70°C / -30°C to +80°C

: 95% max. (non-condensing)

: 8 to 32 V dc (Peak: 36Vdc) Max. operating current is 860 mA.

: 5A.

: USB programming and communication port, CanOpen, Ethernet, RS485.
